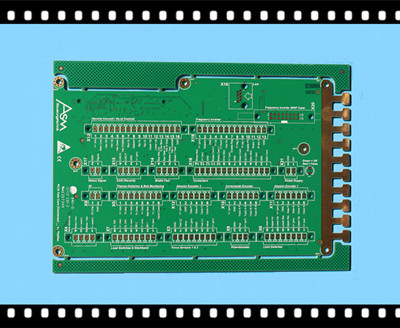

Code | HYG892R04121A | Customer PN | ASM PC |
|
|
Layer | 4 | Blind/Buried Via | NO |
|
|
Base Material | FR4 | Unit Size(mm) | 192.0000 | X | 135.0000 |
Board thickness | 1.5MM | Panle Size(mm) | / | X | / |
Min hole | 0.30MM | Pcs/Panle | 1 | X | 1 |
Total Holes | 623 | Copper OZ(finish) | 35um | Base Cu | / |
W/S(mil) | 8/8 | Min Hole Copper Thickness | 20um |
|
|
Outline Finish | CNC | Finish thickness tolerance | +/-10% |
|
|
Contour tolerance | +/-0.15MM | Customer' Specifications | Customer |
|
|
X-out | / | Solder Mask | ENIG | 2u"mi |
|
Special request | / | Silkscreen |
White |
