4 Layer Rigid-Flex PCB

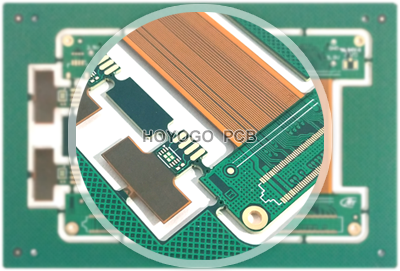

Product Image

Product Details

Rigid-Flex PCB
Layer: 4L
Base Material: FR4 TG180+PI
Rigid Board Thickness: 1.0±0.1mm
Flex Board Thickness: 0.18±0.03mm | GTL-L2 Layer
Surface Finished: ENIG
Unit Size(mm): 61.7*45.4
Panel Size(mm): 81.7*120.0
Min W/S(mil): 5.9/5.9
Min Hole Size: 0.2mm
Solder Mask: Green+Yellow

Production Process

ISO Certification

UL Certification

Application areas

Who will be our parters

FAQ

What’s kind of PCB can you produce?
Our production is producing rigid PCB from 2~56layer with small- medium- mass volume. In the meantime, we can offer you FPC, Rigid-flex, HDI, all other special PCBs from our partner production.
