Civil Aviation PCB | HYG1005R04009B

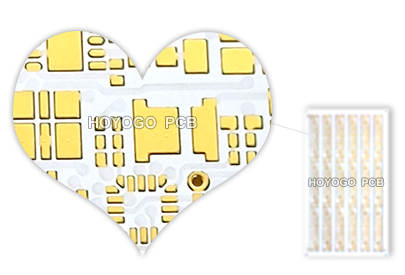

Product Image

Civil Aviation PCB | HYG1005R04009B

Product Details

Special Request:
1. Civil Aviation PCB;
2. 0.2mm Vias: Resin plugged and electroplated filled, compliant with IPC-4761 VII;
3. Blind Vias(L1-L2): Resin plugged and electroplated filled, compliant with IPC-4761 VII.

Layer: 4L
Base Material: FR4 TG150℃
Board Thickness: 0.8±0.12mm
Outer Layer Final Copper Thickness: 1OZ
Inner Layer Final Copper Thickness: 3OZ
Base Copper Thickness: 0.5OZ
Surface Finished: ENIG
Unit Size(mm): 75.90*12.80
Min. W/S(mil): 7.87/5.9
Min. Hole Size: 0.2mm
Solder Mask: White

Production Process

ISO Certification

UL Certification

Application areas

Who will be our parters

FAQ

Can you update a WIP to us every day?
Yes, no problem. We can update it to you every day or every couple of days depends on customer request.
