Press Fit Holes | HYG1005R10003A

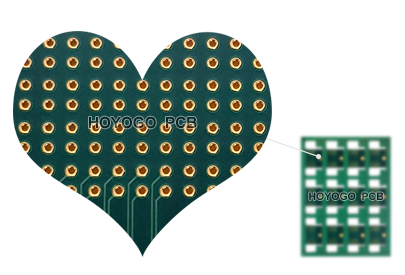

Product Image

Product Details

Special Request:
1. Specified Base Material Model: ISOLA FR408HR;
2. The finished 0.4mm holes are press fit holes, with hole diameter tolerance: ±0.05mm,
and copper plating thickness in the hole: 25-50um;
3. L8 Line Width/Space: 100um/130um for 100Ω differential impedance;
4. Secified 0.2mm Vias: Vias without solder mask openings on both sides need to be plugged
with resin and filled with electroplating, compliant with IPC-4761 VII.

Layer: 10L
Base Material: FR4 TG180℃
Board Thickness: 1.8mm
Outer Layer Final Copper Thickness: 42UM
Inner Layer Final Copper Thickness: 0.5OZ&1OZ
Base Copper Thickness: 0.5OZ
Surface Finished: ENIG
Unit Size(mm): 32.00*37.46
Min. W/S(mil): 4/4
Min. Hole Size: 0.2mm

Production Process

ISO Certification

UL Certification

Application areas

Who will be our parters

FAQ

What kind of board can you offer? How about the layer count and base material?
HoYoGo can offer board of HDI, gold finger, hard gold, flexible, rigid-flex, metal base, quick-turn around and PCBA. The layer is normally from 1 to 28layer. The base material also depends on the requirement, it can be KB or shengyi, etc.
