Home Products High density PCB

1L-FR4 PI-High density pcb

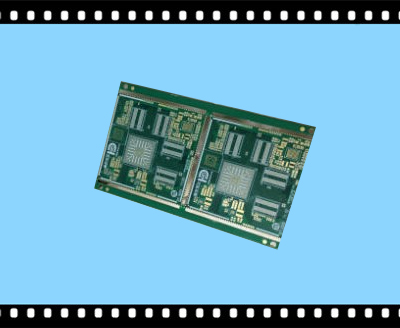

Product Image
1L-FR4 PI-High density pcb
Production process

Specification
Code HYG18072501 Customer PN


Layer 1L Blind/Buried Via NO

Base Material FR4-PI Unit Size(mm) 27.3000 X 21.3000
Board thickness / Panle Size(mm) 85.7000
 X 114.8000
Min hole 0.6mm Pcs/Panle 1 X 1
Total Holes / Copper OZ(finish) 1OZ Base Cu /
W/S(mil) 6/4mil Min Hole Copper Thickness N/A

Outline Finish CNC+V-CUT Finish thickness tolerance +/-10%

Contour tolerance +/-0.13mm Surface Finishing
 7oz gold finger

X-out / Solder Mask Green

Special request
Silkscreen /

ISO Certification

UL Certification

Application areas
