Home Products Rigid PCB

HYG812R02023A

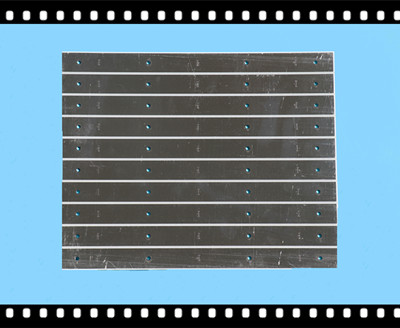

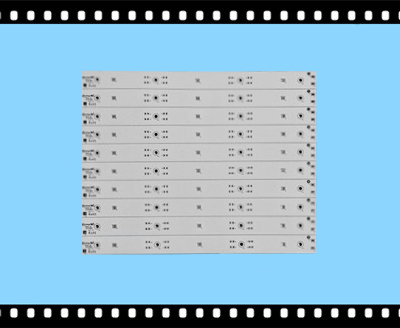

Product Image
HYG812R02023A
HYG812R02023A
Product Details


Production process

Specification
Code HYG812R02023A Customer PN /

Layer 2 Blind/Buried Via NO

Base Material FR4 TG135 Unit Size(mm) 20.0000 X 250.0000
Board thickness 1.6MM Panle Size(mm) 200.0000 X 250.0000
Min hole 0.38MM Pcs/Panle 1 X 10
Total Holes 189 Copper OZ(finish) 1OZ Base Cu /
W/S(mil) / Min Hole Copper Thickness 20um

Outline Finish CNC+V-CUT Finish thickness tolerance +/-10%

Contour tolerance +/-0.15MM Customer' Specifications HYG

X-out 2 Solder Mask White

Special request Solder mask thickness:10um(min) Silkscreen Black
