6L-FR4 HDI 2+2+2 Flex board

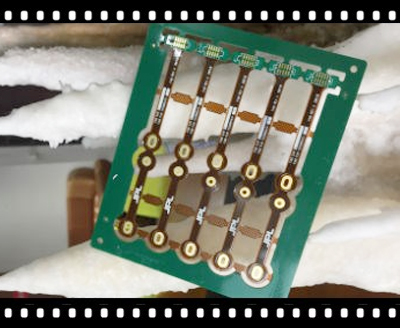

Product Image

Product Details

Production process

Specification

Code	HYG18072503	Customer PN
Layer	6L	Blind/Buried Via	NO
Base Material	FR4-HDI 2+2+2	Unit Size(mm)	/	X	/
Board thickness	/	Panle Size(mm)	/	X	/
Min hole	0.1mm+0.2mm	Pcs/Panle	1	X	1
Total Holes	/	Copper OZ(finish)	1OZ	Base Cu	/
W/S(mil)	6/4mil	Min Hole Copper Thickness	20um
Outline Finish	CNC+V-CUT	Finish thickness tolerance	+/-10%
Contour tolerance	+/-0.13mm	Surface Finishing	ENIG Thickness
X-out	/	Solder Mask	Green
Special request		Illustration	Half hole

FAQ

Q:Are you a manufacturer (Factory) or trading company?

A:HoYoGo is a manufacturer with a mass production of 25000 sqm factory and a

medium-size production for small-medium volume. Our UL No. is E493066.

Q:Do you have a price list?

A:PCB is customized product; all prices will depend on customer actual gerber data and

qty request, it will be difficult to provide it.

Q:Can you offer me better payment term (OA 30/45/60 DAYS)?

A:It depends on customer credit and their company finance. In general, we suggest start with prepayment for some testing order to get credit record. OA term can be released step by step according to cooperation situation.
